Features
High power and large air volume
Further evolution of SMD rework station
High power and large volume hot air for quick removal of components
A tool that can provide powerful hot airflow for repairing high heat capacity circuit boards that require high blow volume and high output, and sufficient hot airflow for appropriate blow volume and high output for high-density mounting substrates.
Efficiency improvement
The high volume airflow and high output of FR-810B make it possible to perform the same work in only one-third of the time required when using a conventional model. This reduces the thermal impact on boards and components.
* Examination of time taken for connector sections soldered onto a ceramic board to be heated to 200°C with maximum temperature and airflow settings selected.
* Single nozzles with an approximately 4mm diameter were used.
Improvements of FR-810B
On top of the features of FR-810, high power and large air volume, the new functions of vacuum pickup and pickup indicator have been given to FR-810B.
The 2 new functions make it possible to remove a component without damaging PWB.
・New type of nozzles for improvement of temperature characteristics |
The new nozzle improves work efficiency with uniform heating by hot air convection inside the nozzle which is created due to vents on the nozzle top. (Only with BGA nozzle) |
 |
・Vacuum pickup function |
The vacuum pickup function is to pick up a component with a suction pad and vacuum. It will pick a component only after the hot air melts solder joints. This can avoid an error to peel off the land by removing a component with excessive force. |
 |
・Pickup indicator |
By pre-setting pickup function, a component can be picked up automatically when solder is melted. At the same time, the indication comes up and the moment of picking up will be visible. Even a component and solder joints can not be seen as covered by a nozzle, easy and safe picking up is possible. |
 |
Use conventional HAKKO nozzles
Align the projection part, attach the conventional nozzle to the heater pipe.
*The heater pipe of HAKKO FR-810 (discontinued) has two projection parts. In order to use the conventional nozzle, put the conversion adaptor on the heater pipe that was included in your purchased HAKKO FR-810 as one of standard accessories.
Click here for details.
Simple nozzle removal and easy maintenance
Nozzles can be quickly changed for many different types of components.
In addition, conventional nozzles are compatible. Heaters can also be easily and securely replaced.
Quick-change N51 nozzles |
Simple heater replacement |
 |
 |
Simple, tool-free removal and attachment. |
Simply remove four screws to replace heater. |
Timer function
Timer function is to control the time of operation.
This can help to prevent parts from overheating and can improve the overall quality of rework.
Chain presets function for making a simple thermal profile
The chain presets function is to make a simple thermal profile by combining several preset conditions. (Up to 5 steps) This can improve work efficiency a lot by standardizing work time, avoiding overheating, improving repeatability of operation, and making difficult rework jobs easy.


Auto sleep and auto shutoff features
 |
To ensure safety and conserve power, when the handpiece is placed in the handpiece holder, the auto sleep function will be activated and it will start cooling automatically. If the handpiece has not been removed from the handpiece holder (e.g. Using it in a rework fixture) and it has been idle for 30 minutes, auto shutoff function will be activated. It will be automatically powered off. Access to settings can be restricted by the password function.
|
Specifications
Model No. | Packing List |

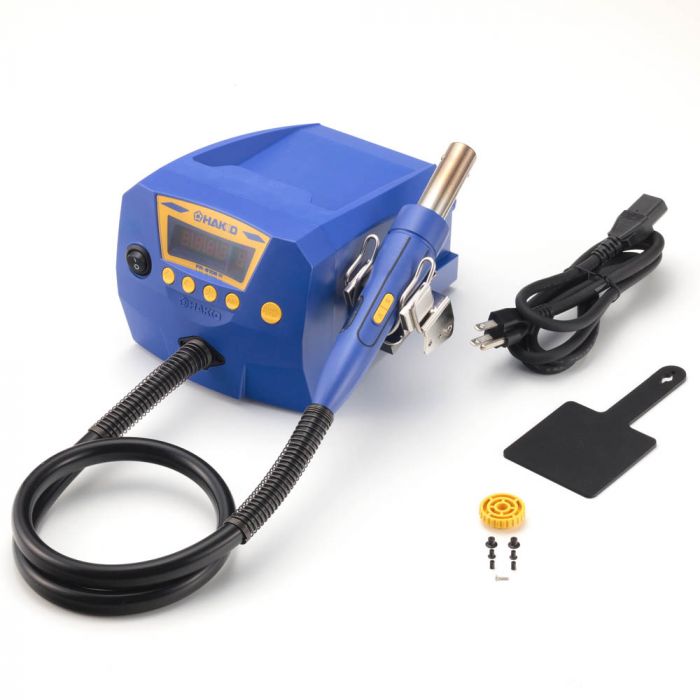

FR-810B |
Station with handpiece, Nozzle (Φ 4 mm), Handpiece holder, Vacuum pipe control knob L (with screw), Pads (qty 2 each of Ø3 mm, Ø5 mm, Ø7.6 mm), Heat resistant pad, Power Cord, Temperature distribution chart, Instruction manual  |

Model No. | FR-810B |
Power consumption |
AC230V:1,200W
|
Temperature range |
50 to 600ºC |
・Station
Power consumption |
30W |
Air flow |
1-9 (5 to 115L/min) |
Dimensions |
160(W)×145(H)×220(D)mm |
Weight |
1.5kg |
・Handpiece (Hot air)
Power consumption |
AC230V:1,170W
|
Standard nozzle |
Φ4mm (No.N51-02) |
Total length |
250mm |
Weight |
180g |
Soldering Tip / Nozzle
Nozzle Set
- N51-50 Nozzle Set
- Contains N51-01, N51-03, N51-04,and N51-05.
Single
- N51-01 Single
- Vacuum function inoperative nozzle
- N51-02 Single
- Standard nozzle for FR-810/FR-810B
Bent Single
- N51-05 Bent Single
- Vacuum function inoperative nozzle
Hot Air Series (conventional type)
QFP
- A1127B QFP
- Size 17.5 x 17.5
- A1215B QFP
- Size 42.5 x 42.5
SOP
- A1131 SOP
- Size 4.4 x 10
Vacuum function inoperative nozzle
- A1132 SOP
- Size 5.6 x 13
Vacuum function inoperative nozzle
- A1133 SOP
- Size 7.5 x 15
Vacuum function inoperative nozzle
- A1134 SOP
- Size 7.5 x 18
Vacuum function inoperative nozzle
- A1258B SOP
- Size 7.6 x 12.7
PLCC
- A1188B PLCC
- Size 9 x 9(20pin)
- A1140B PLCC
- Size 11.5 x 11.5(28pin)
- A1141B PLCC
- Size 11.5 x 14(32pin)
- A1139B PLCC
- Size 12.5 x 7.3(18pin)
- A1135B PLCC
- Size 17.5 x 17.5(44pin)
- A1136B PLCC
- Size 20 x 20(52pin)
- A1137B PLCC
- Size 25 x 25(68pin)
- A1138B PLCC
- Size 30 x 30(84pin)
- A1189B PLCC
- Size 34 x 34(100pin)
SOJ
- A1183 SOJ
- Size 15 x 8
Vacuum function inoperative nozzle
Single
- A1124B Single
- Size Φ2.5
Vacuum function inoperative nozzle
- A1130 Single
- Size Φ4.4
Vacuum function inoperative nozzle
- A1142B Bent Single
- Size Φ1.5 x 3
Vacuum function inoperative nozzle
- A1190 Dual Single
- Size Φ2.5 x 9.5
Vacuum function inoperative nozzle
- A1325 Dual Single
- Size Φ1.5 x 5 to 10
Vacuum function inoperative nozzle
SIP
- A1191 25L
- Vacuum function inoperative nozzle
- A1192 50L
- Vacuum function inoperative nozzle
Replacement Parts / Option

| Part No. | Name | Specifications |
 |
B5126 |
Air guard assembly |
with air guard fixing bracket |
 |
C5027 |
Board holder |
|
 |
B5098 |
Board clip |
|
 |
B5136 |
Board support unit |
|
 |
B5137 |
Rubber foot |
|
 |
C5028 |
Grip fixture M set |
with hexagon wrench, o-ring and tray |
 |
C5029 |
Grip fixture L set |
with hexagon wrench and o-ring |
 |
A5027 |
Slide gear |
|
 |
B5138 |
Positioning unit |
|
 |
B5139 |
Tray |
|
 |
B5140 |
Tray assembly |
|
