Description

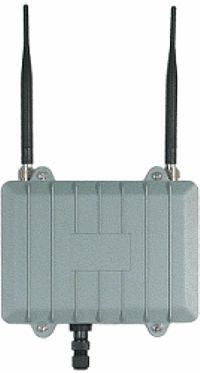

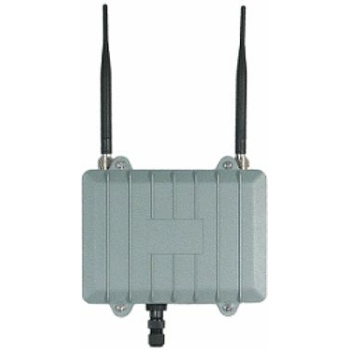

The WRAP-BOX-2A1E is an industrial type Die Cast aluminum box of high strength, small size and quite light. It is IP65 certified and is of NEMA-67 category. It has two sockets for N-type connectors, socket for RJ-45 waterproof fast solder sold separately, waterproofing seal and support connector for mast.
Package Included: Aluminum box and mast support.
Specifications
Thermal characteristics:
• Seal resistance temperature -60 ° C ~ + 230 ° C.
• Temperature increase due to solar radiation + 6.5 ° C.
• Temperature rise using internal load 5-10W approximately + 5.5 ° C.
Dimensions:
• Internal useful space: 180 x 125 x 46mm.
• Wall thickness 3mm.
• Can be supported on masts up to 7.6cm in diameter.
Upon request, we can make you an aluminum support base that matches the bases of your own board.
