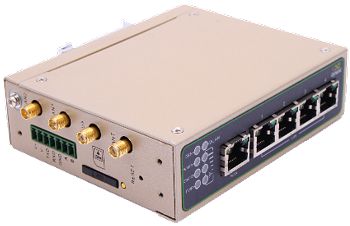

InHand Industrial IoT 4G router IR615-S-L3 4G LTE, VPN

InHand Industrial IoT 4G router IR615-S-L3-WLAN 4G LTE, 3G, VPN

Integrating 3G, 4G LTE and advanced security, the InRouter615-S series is the next generation of InRouter695 cellular router. With embedded hardware watchdog, link detection, auto-recovery and auto-reboot, the InRouter615-S series provides reliable communications to unattended sites. Reliable VPN technology secures sensitive data. The InRouter615-S also utilizes remote management tools such as a CLI, a webinterface and InHand Device Manager Cloud platform for batch configuration and monitoring.
InRouter615-S series is ideal for large-scale Internet of Things (IoT) applications including kiosks, vending machines, medical equipment and industrial control systems.

Features:

Uninterrupted Network Access
• Optional 4G/LTE, 3G/HSPA+, 3G/EV-DO, with 100Mbps downlink, 50Mbps uplink.
• Automatically fallback to GPRS/CDMA when LTE is unavailable.
• 3G/4G and Wi-Fi backup for redundant communication

Rugged Industrial Design
• Metal housing, IP30
• EMC levels 3
• 1.5KV isolated Ethernet port
• Wide temperature range: -20 ~ 70°C
• Wide input voltage range: 9 ~ 26VDC

Data Security
• Data Transmission Security
IPsec VPN, L2TP, PPTP, SSL VPNand certificatesguaranteedata security
• Network Security
Stateful Packet Inspection (SPI), Secure Shell (SSH) and DDoS mitigation Intrusion protection, and IP to MAC Binding
• Management – Plane Security
Multi-level user authority
Administrative permission management

Reliable Cellular
• Automatic Link Detection
PPP Layer Detection: monitor the cellular connection
Network Connection Detection: automatic redial and reboot
VPN Tunnel Detection: ruggedized and improved VPN tunnels
• Auto-recovery
Embedded hardware watchdog, able to automatically recover from various failure, ensures highest level of availability.

Remote Management
• Local Web-Brower Interface
• Command-line interface
• InHand Device Manager for batch management and configuration

Industrial Serial
• Transparent serial communication for point to multi-point serial over cellular.
• Modbus TCP to Modbus RTU protocol conversion

Specifications

Network
• Network Access: Custom APN, VPDN
• Athentication: CHAP/PAP
• Network: GSM/GPRS/EDGE, (GPRS/EDGE: Multislot Class 12), UMTS/HSPA+/EVDO/TD-SCDMA/TD-LTE/FDD LTE
• Lan: ARP, Ethernet
• Wan: Static IP, DHCP, PPPoE, PPP
• IP: Ping, Trace, DHCP Server, DHCP Relay, DHCP Client, DNS Relay, DDNS and Telnet
IP Routing: Static Routing

Security
• Network Security: DoS protection, Stateless Packet Inspection, Filtering Multicast/Ping package, Virtual IP Mapping, Access Control List (ACL), IP/MAC Binding, Port forwarding
• Data Security: IPsec VPN/L2TP/PPTP/GRE/OPEN VPN/CA
• Management Serurity: Multi level user authority

Reliability
• Link Status Detection: Reconnects automatically when a link failure is detected
• Auto Recovery: Hardware Watchdog

Intelligence
• Integrated DTU Functions: Support Modbus protocol, virtual serial port, WP agreement, WN protocol, Trap+Poll, transparent transmission

Management & Maintenance
• Traffic Management: Bandwidth control, IP-based QoS
• Configuration: Telnet, web, SSH
• Firmware Upgrade: Via web and via InHand Device Manager
• Log: Local log, remote log, export log via serial port, Important log backup in flash memory
• On-Demand Dial Up: Trigger by data, text message or on demand
• Network Management: InHand Device Manager for batch configuration
• Multi level user: Authentication for configuration and remote access
• Maintenance Tool: Ping, traceroute, speed test
• Status Check: System, modem, network connections, route

Interface
• Ethernet Port: 1 x 10/100Mbps WAN,
4 x 10/100Mbps, LAN
1.5KV isolation protection
Full Duplex or Half Duplex
RJ-45 type Connector
• Power Supply: DC9 – 26V Polarity Dependent, Reverse polarity Protection
• Serial Port: 1 x Serial Port (RS-232/RS-485) 15KV ESD Protection
• SIM Holder: Drawer Card Holder x 1, Operating Voltage: 3.0V / 1.8V
• Reset: Pinhole Reset Button
• Antenna Connectors: 3G/4G: SMA x 2

Mechanical Features
• Dimensions (mm): 127 x 108.2 x 35
• Installation: Standard Din-rail, Wall Hanger mounting optional
• Housing: Metal
• Protection Level: IP30
• Cooling: Passive (No Fan)

Power Consumption
• Standby: 120mA – 200mA @ 12V
• Operating: 150mA – 320mA @ 12V
• Peak: 320mA @ 12V

Environment – Temperature
• Humidity: 5~95% relative humidity (non condensing)
• Storage Temp: -40 ~ 85oC
• Operating Temp: -20 ~ 70 oC

LED Indicators
• POWER, STATUS, WARN, ERROR, Wi-Fi, SIM, Three Levels of Cellular Signal Strength

EMC - Certification
• Electrostatic Discharge Immunity: EN61000-4-2, level 3
• Electrical Fast Transient/Burst Immunity: EN61000-4-4, level 3
• Surge: EN61000-4-5, level 3
• Shockwave Immunity: EN61000-4-12, level 3
• Certification: CE (EMC & LVD & RF & Temperature), FCC
