Description

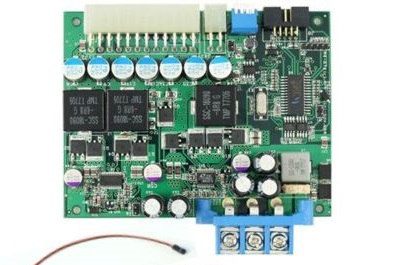

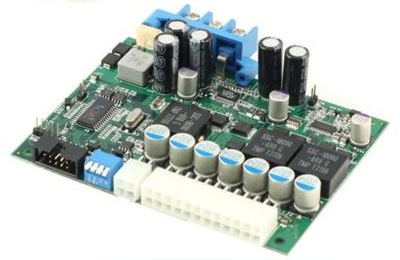

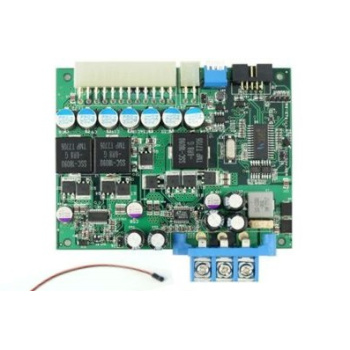

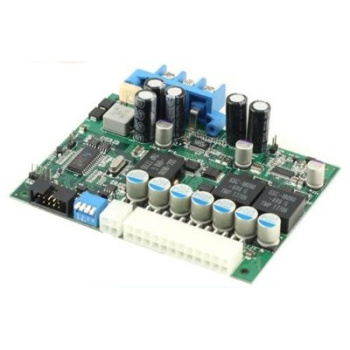

M4-ATX is an intelligent, high power, vehicle (car / boat / electric cart) DC-DC ATX PC power supply designed for use with car pc or general purpose battery powered applications.
Designed to provide power and to control the motherboards's ON/OFF switch based on ignition status, M4-ATX is a wide input (6 to 34V) vehicle / car / battery operated ATX power supply capable of surviving tough car engine cranks (down to 6V) as well as transient over-voltage situations.
Connect it to your car / boat / RV / solar battery and power up your PC! By using Patent Pending HyperWatt[TM] technologies, M4-ATX packs an impressive amount of power relative with its small footprint.

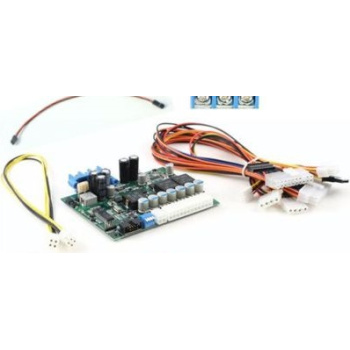

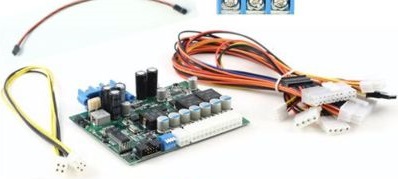

Includes On/Off cable
M4-ATX has several key advantages over traditional power supplies:
- Programmable shutdown / sleep modes via optional serial cable.
- Fits any motherboard equipped with a 20 or 24pin ATX connector.
- 100% silent, fanless, no moving parts.
- Operates from 6-34V, multi chemistry batteries supported.
- Highly efficient design, does not produce a lot of heat.
- Works with any Intel Core Duo as well as all VIA or AMD processors.

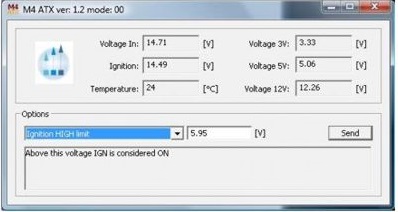

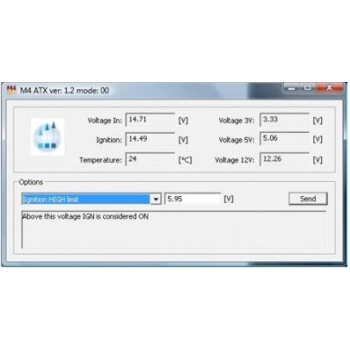

M4ATX System Tray Monitor & Setup Application
This install kit provides two applications.
M4ATXTray.exe which allows monitoring the M4ATX power supply voltages and temperature (needs to be connected thru a USB cable to the computer).

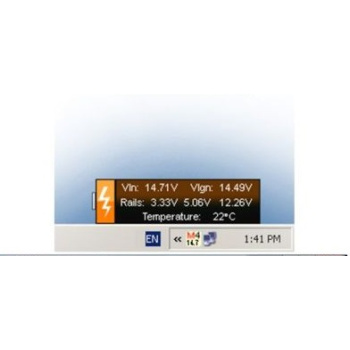

The application adds a small icon on windows system tray which on mouse over displays the voltages and temperature, and can be customized with several skins.
Specifications
Specifications
Input voltage: DC 6-34Vdc
Input security: 25A
Deep discharge protection: 11.2V
Output voltages: 5V @ 12A | 3.3V @ 12A | 5VSB @ 1.5A | + 12V @ 10A * | -12V @ 0.15A
Dimensions 122mm X 94mm
Operating temperature: -40 ~ + 65oC
* for input voltage <8 or >28V
It has a voltage and temperature control program via USB connection.
Download M4ATX System Tray Monitor & Application
Warranty 1 year.
