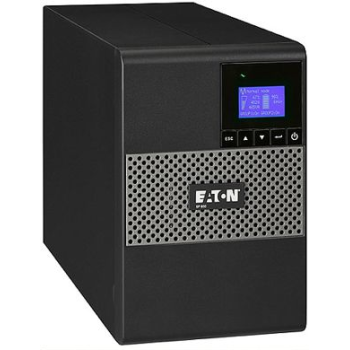

EATON 5P 1550i True Sinewave 1550VA UPS Line Interactive LCD

EATON 5P 1550i True Sinewave 1550VA UPS Line Interactive LCD
True sinewave output suitable for small servers, network devices, storage systems.
With AVR.
Surge data line protection.
Communication ports: USB & RS232 serial.
Part number: 5P1550i

Rating:

• Capacity: 1550VA / 1100W
• Input Connection: IEC320/10A

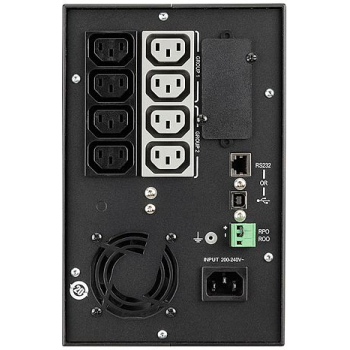

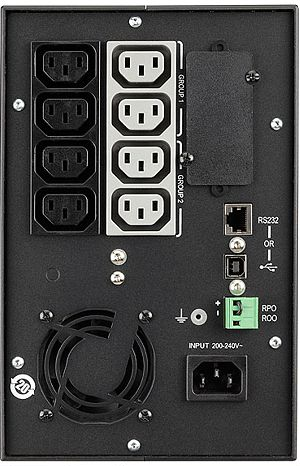

• Output Connection: 8 x IEC320/10A
• Switched Outlet Group: 2
• Runtime in 70% load: 8 min.
• Runtime in 50% load: 13 min.

Operational:

• Nominal input voltage: 220/230/240 Vac
• Input voltage range: 184 – 276 Vac (±20 of nominal)
• Operating frequency: 50/60Hz auto sensing
• Power factor: same as Load
• Nominal output voltage: 220/230/240 Vac
• Output voltage regoulation: -10%/+6% of nominal voltage
• Overload capacity: 110% 3 min, 150% 10 cycles
• Operating temperature: 0°C ~ +40°C
• Storage temperature: -15°C ~ +50°C
• Audible noise at 1 meter: < 40dB

User Interface:

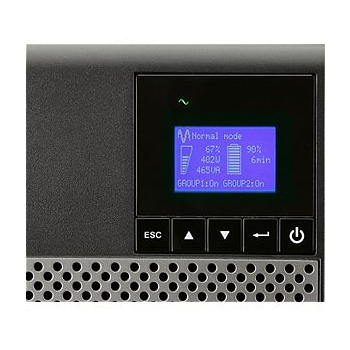

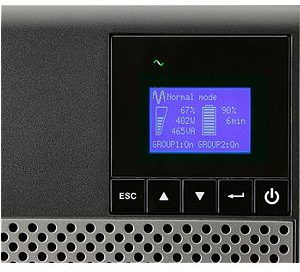

• Graphics LCD display: Energy metering, Voltage, Load, Configuration
• Communication: RS232 & USB
• Optional: SNMP adapter
