APC Smart-UPS 1500VA Sinewave SMT1500IC

APC Smart SMT1500IC, Sinewave Line Interactive UPS 1500VA.
True sinewave output suitable for small servers, network devices, storage systems.
With AVR.
Communication ports: USB & RS232 serial & SmartConnect.
Part number: SMT1500IC

Rating:

• Capacity: 1500VA / 980W
• Input Connection: IEC320/10A

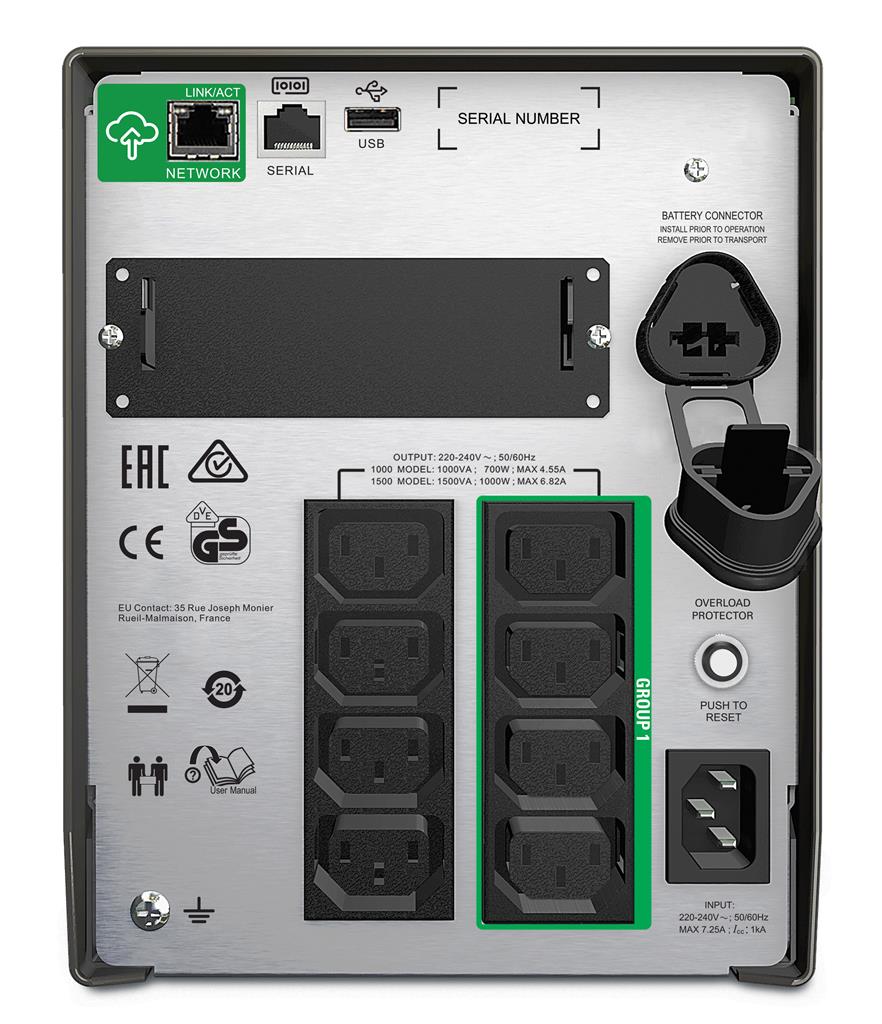

• Output Connection: 8 x IEC320/10A
• Runtime in full load: 7 min.
• Runtime in half load: 24 min.

Operational:

• Nominal input voltage: 230Vac
• Input voltage range: 160 – 286 Vac
• Operating frequency: 50/60Hz ±3Ηz auto sensing
• Power factor: same as Load
• Configurable output voltage: 220 / 230 / 240 Vac
• Output voltage distortion: 5% at full load
• Operating temperature: 0°C ~ +40°C
• Storage temperature: -15°C ~ +55°C
• Audible noise at 1 meter: 45dBA

User Interface:

• LCD Display screen:
Operating mode and efficiency
Load VA/Watts/Amps
Input/Output Voltage and frequency
Battery capacity and runtime
Energy meter and more
2 bar graphs
Leds for: On Line, On Battery, Replace Battery, Fault Indicators
• Communication: RS232 & USB & Cloud (Ethernet)
• Optional: SNMP adapter (SMARTSlot)

• Dimensions: 219mm x 171mm x 439mm ( H x W x D ).
• Weight: 24.1Kg.
